Vertical Drain: Sand Pile/Sand Drain Construction

In the 1930s the first reasonable application of vertical sand drains was made in California. In Sweden, during the same decade, Kjellman introduced the first prototype of a prefabricated vertical drain made entirely of cardboard (Jamiolkowski et al., 1983). Subsequently, several types of prefabricated vertical drains were developed which are basically consisting of a plastic core with a longitudinal channel wick functioning as a drain, and a sleeve of paper of fibrous material as a filter protecting the core.

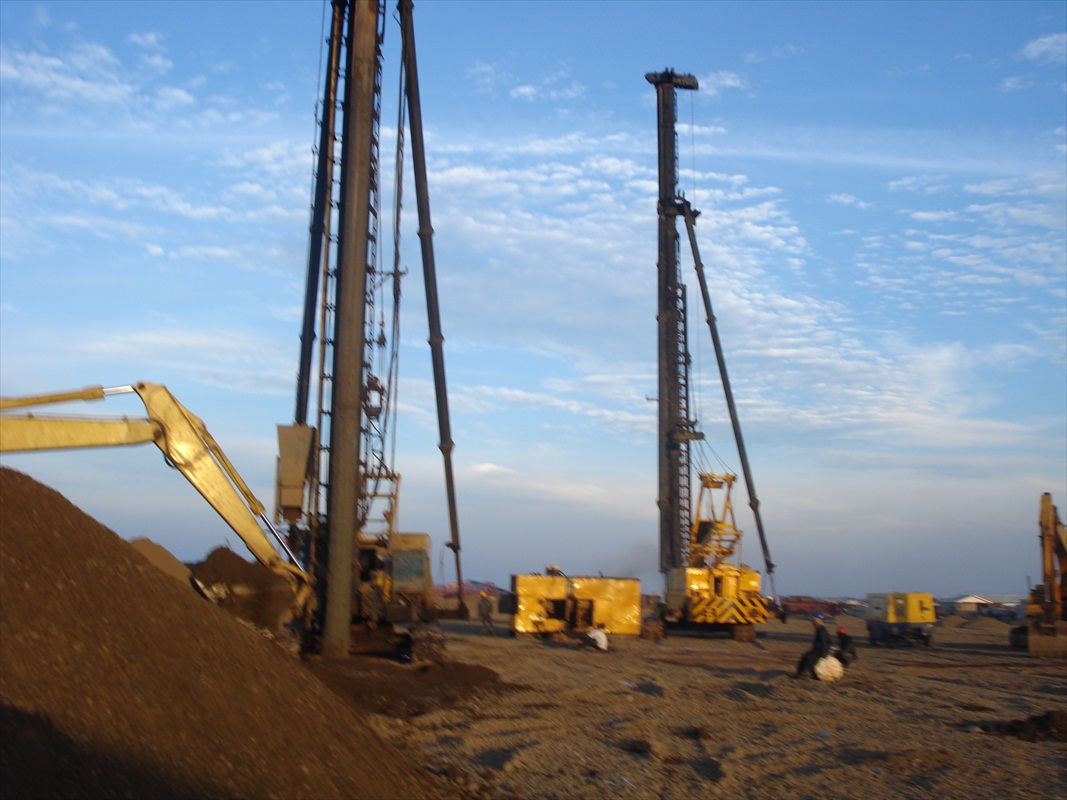

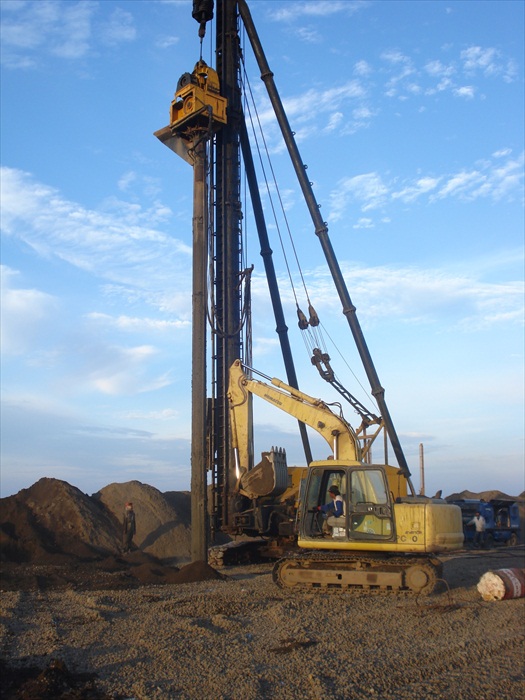

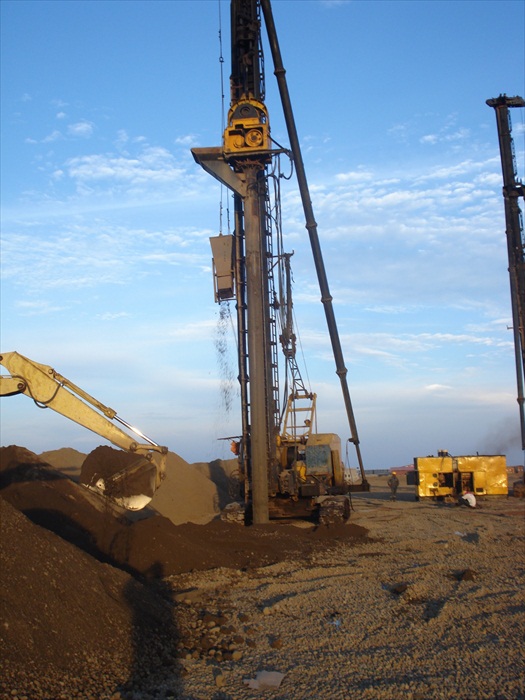

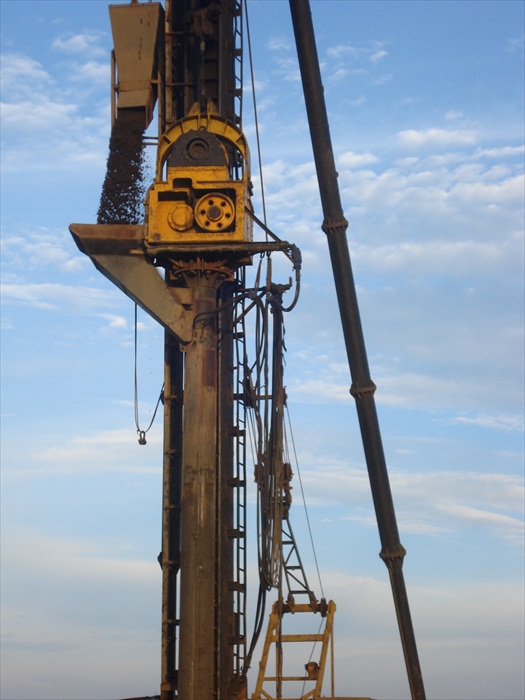

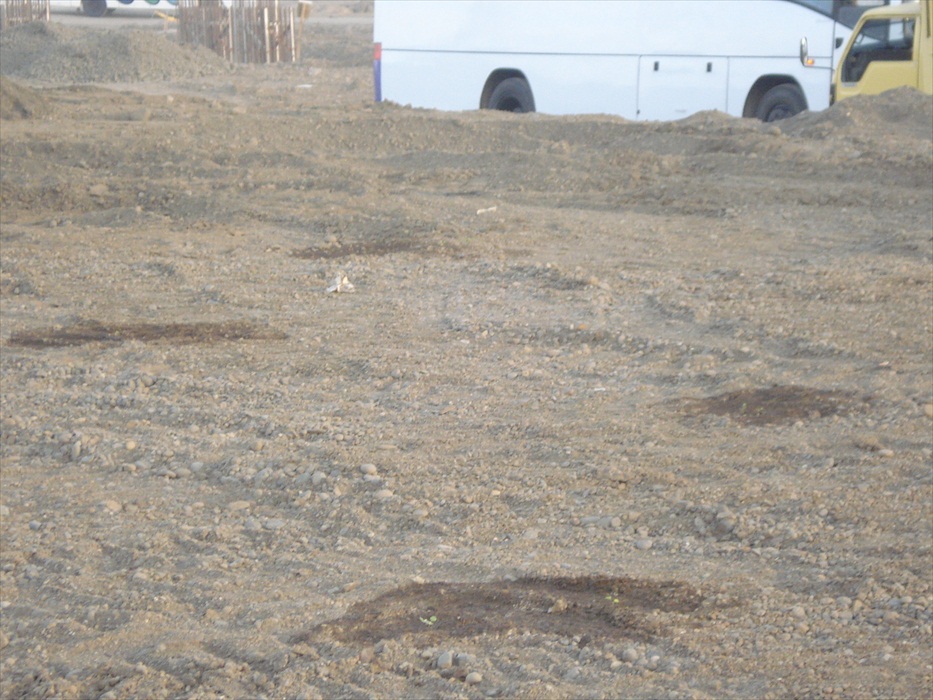

Sand Pile Construction Gallery

Click thumbnails to view larger images

  • Vertical drain sand drain sand pile

    Sand Pile Indonesia

  • Vertical drain sand drain sand pile

    Vertical Drain Method

  • Vertical drain sand drain sand pile

    Sand Drain Indonesia

  • Vertical drain sand drain sand pile

    Vertical Sand Drain

What is the Sand Pile (Sand Drain) Installation Procedure?

  • 1 Sand drains are basically boreholes filled with sand.
  • 2 For the displacement type of sand drains, a closed mandrel is driven or pushed into the ground with resulting displacement in vertical and horizontal direction.
  • 3 The installation causes therefore disturbances, especially in soft and sensitive clays, which reduces the shear strength and horizontal permeability.
  • 4 The low- or non-displacement installations are considered to have less disturbing effects on the soil.
  • 5 Drilling of the hole is done by means of an auger or water jets. In terms of jetting, however, installation is very complex.
